PCB Fabrication
Home > Service > PCB Fabrication
PCB Fabrication
As a leading PCB manufacturer based in Shenzhen, China. Aoshuo fulfills the diverse requirements of our customers, ranging from simple to complex circuit board manufacturing. Our extensive range of services includes the production of bare boards and complex circuit boards of various sizes, technologies, and types. As a custom PCB manufacturing service provider, we tailor our services to meet your specific needs, ensuring that every product is manufactured to the highest standards.

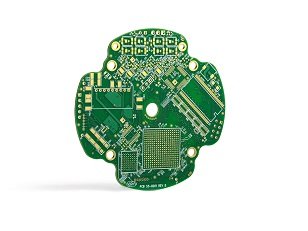

Products

PCB Capability

Item Manufature Capability
Layer 1-50 layers
Materials FR-4, High Tg, Halogen-free, Rogers, Ceramic, Rig-flex, etc.
Finished Copper Thickness 12OZ
Board Thickness 0.2 to 6.0mm
Board Thickness Tolerance ±0.1mm
Min.Track Width 3mil
Min.Trace Space 3mil
Min. PTH Hole 0.15mm
Min. NPTH Hole 0.075mm
Drilling Bit Size (CNC) 0.15 to 6.50mm
Finished Hole Dimension 0.1 to 6.0mm
The hole tolerance ±0.05mm
Hole Position Tolerance ±0.05mm
Aspect Ration 10：1
Max. Panel Dimension 646*1200mm
Solder Mask Green, Blue, Red, Black, White, Yellow, etc.
Impedence Control ±5%
Surface Finishing HASL(Lead Free), Immension Gold, OSP, Immension Silver, etc.
Special Requirement Buried&Blind holes, Counter Sink, Counter Bore, Regid-flex board, etc.

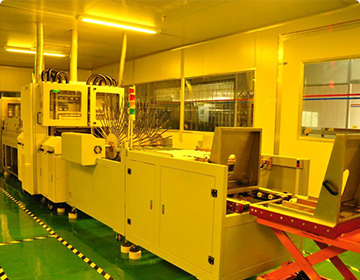

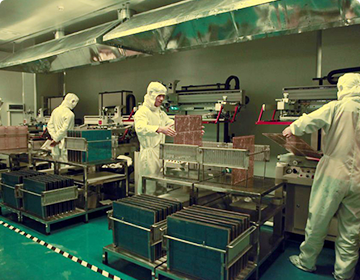

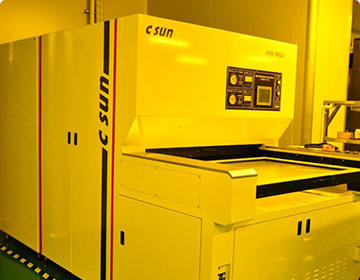

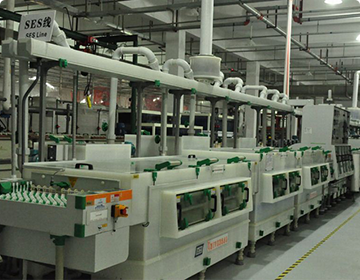

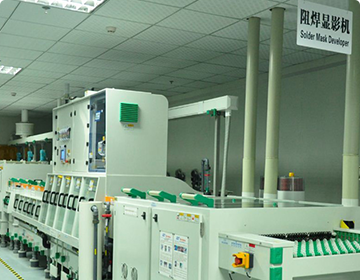

Factory Equipment
